ESPECIFICACIONES
DETALLES
· Plataforma: Moterra Neo
· Nombre del modelo: Moterra 3
· Codigo del modelo: C65194U
CHASIS
· Cuadro: Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts
· Horquilla: RockShox Psylo Silver RC, 160mm, Motion Control, SoloAir, 15x110mm Maxle, tapered steerer, 44mm offset
· Dirección: Acros ICR, 1.5" to 1.8", sealed bearings
· Amortiguador: RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm
SISTEMA ELÉCTRICO

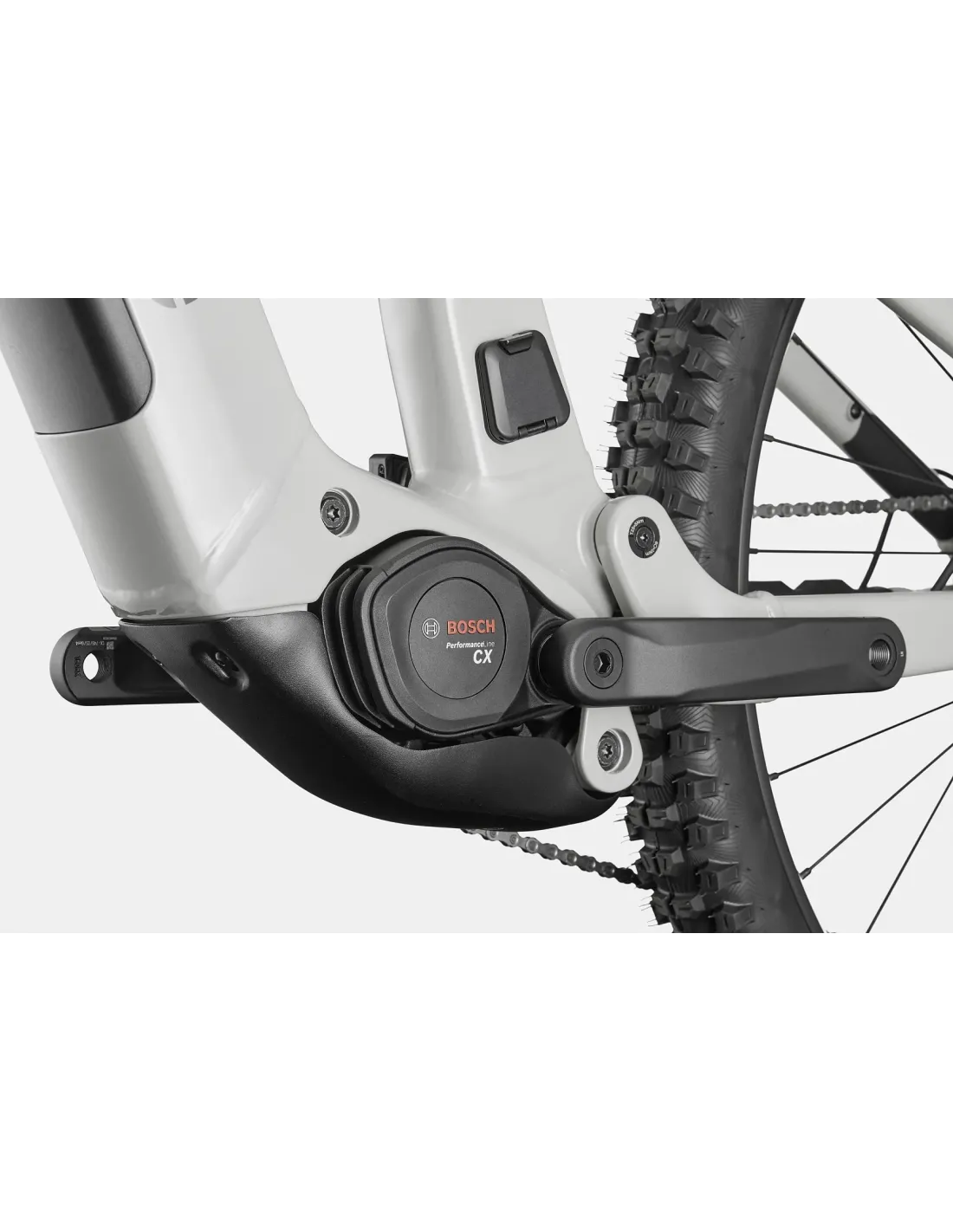

· Unidad de transmisión: Bosch Performance Line CX
· Batería: Bosch PowerTube, 800Wh
· Cargador: Bosch 4A
· Pantalla: Bosch Purion 200
TRANSMISIÓN

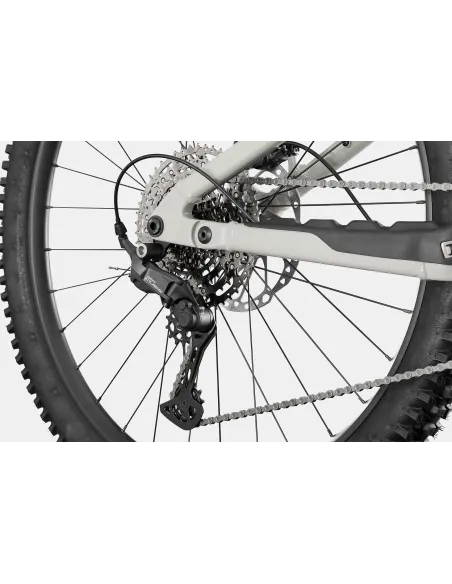

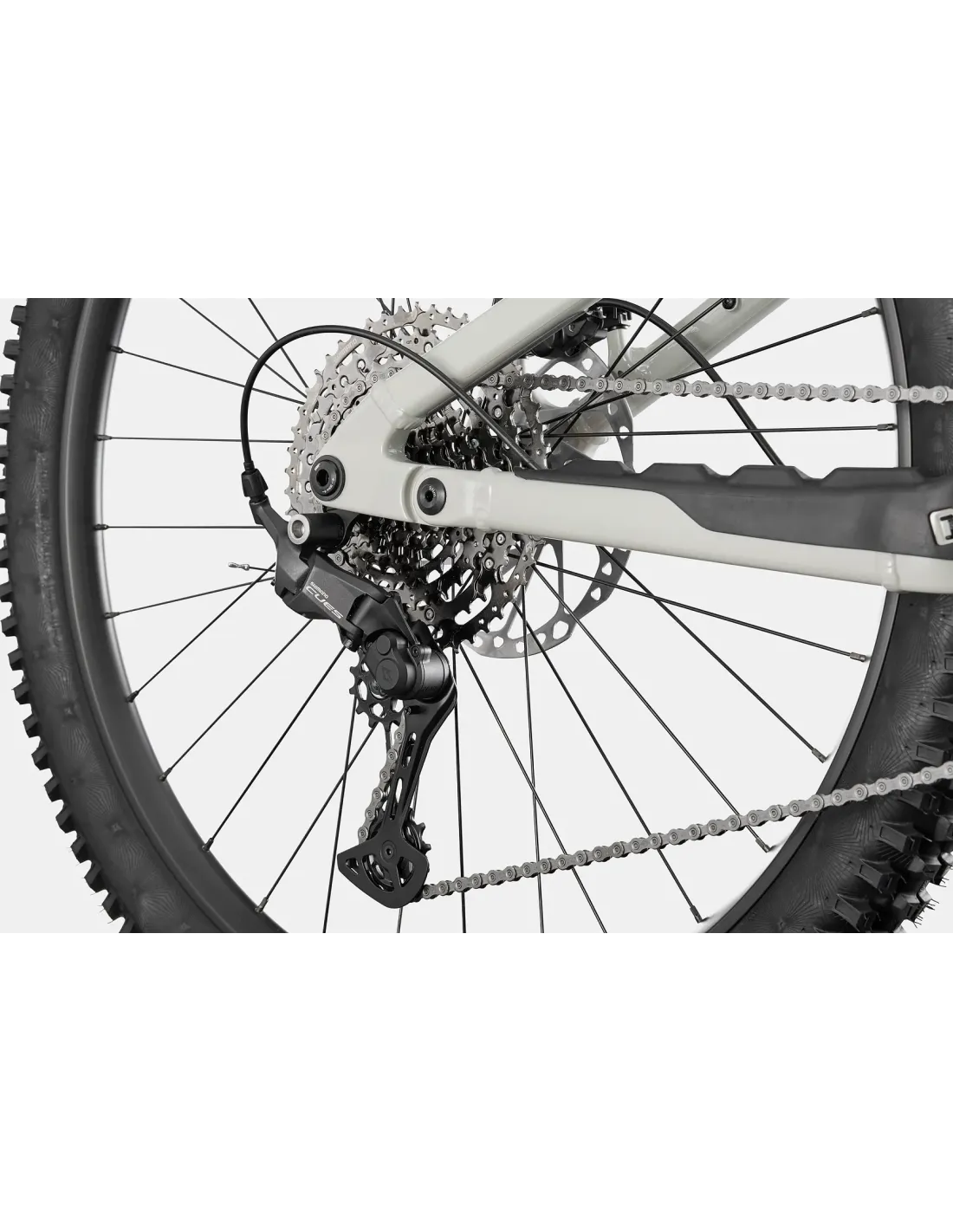

· Cambio: Shimano CUES U6000, LinkGlide
· Shifters: Shimano CUES U6000, 11-speed, LinkGlide
· Cadena: Shimano LG500, LinkGlide, 11-speed
· Bielas: FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
· Casette: Shimano CUES LG400, LinkGlide, 11-50, 11-speed
FRENOS
· Frenos: Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors
· Manetas de freno: Shimano MT501 hydraulic disc
RUEDAS
· Llantas: WTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible
· Radios: DT Swiss Champion 2.0
· Medida de la cubierta: 2.4
· Medida de rueda: 29
· Bujes: (F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock
· Cubiertas: (F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable
COMPONENTES

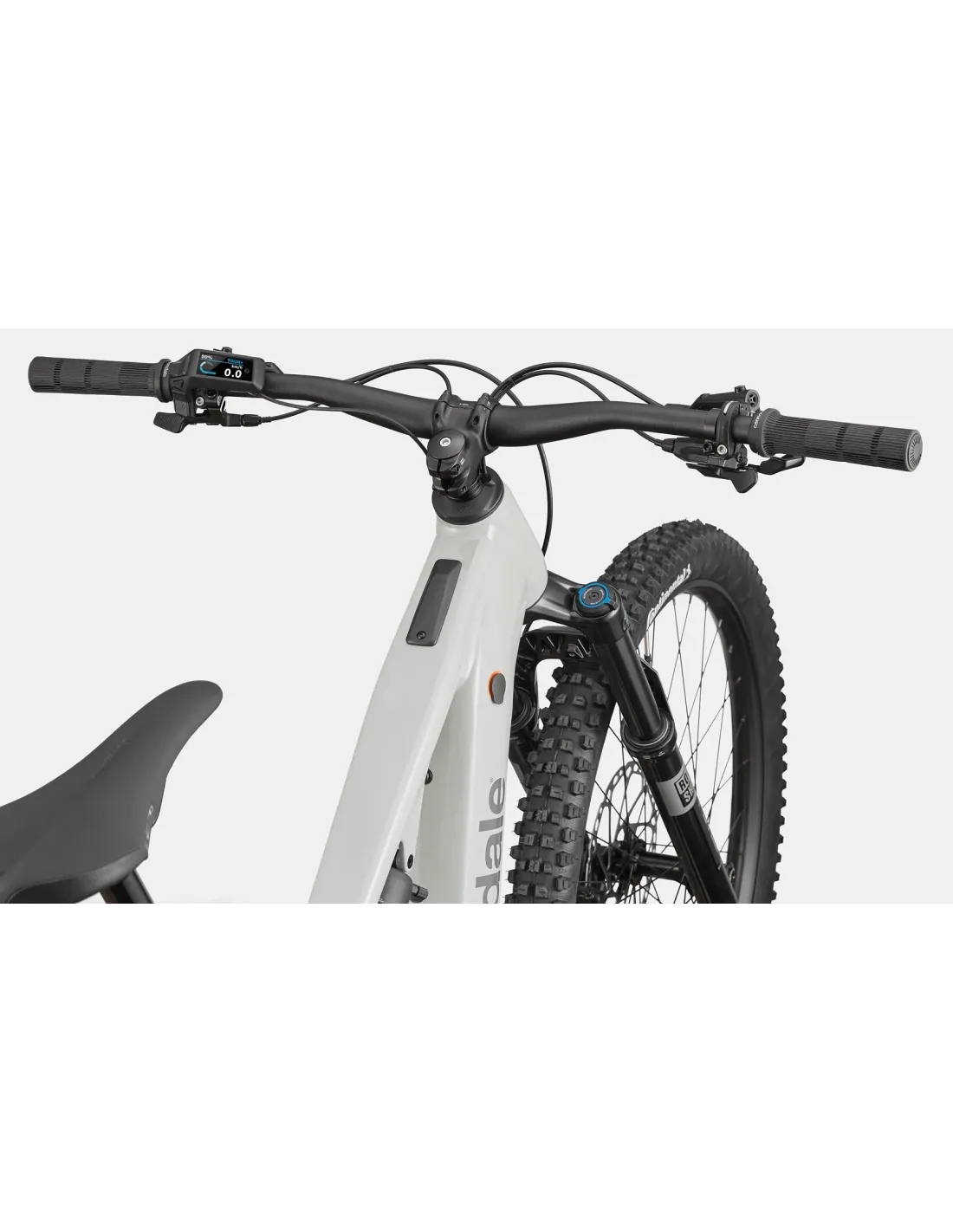

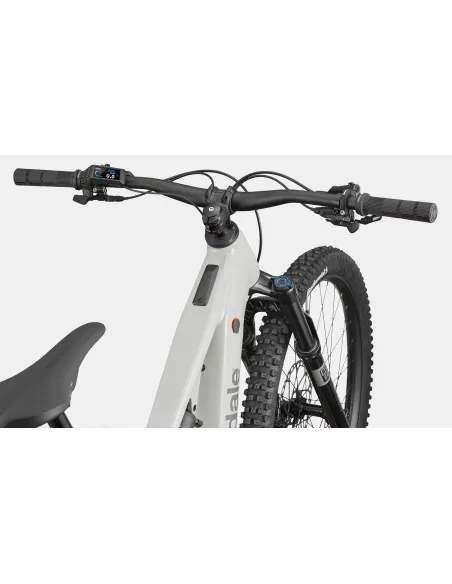

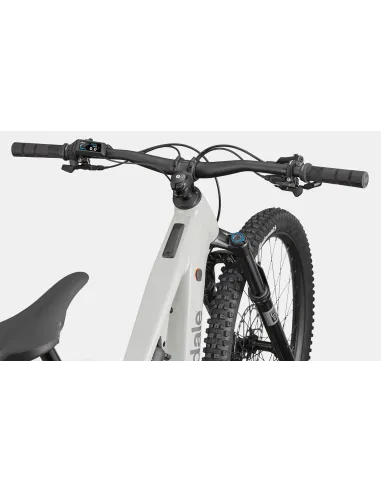

· Manillar: Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
· Potencia: Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
· Puños: Cannondale TaperRidge
· Sillín: WTB Silverado Medium
· Tija sillín: Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
EXTRA
· Extras: Bosch PowerMore range extender co
